The DSP Modular Inverter Line
DSP-500/1000 Inverter Line Available In 500 VA And    one ( 1) kVA
DSP 2.5kVA Flat Inverter

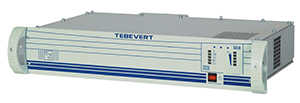

The Tebevert DSP-120 Modular Inverter System is designed to address the critical AC powering requirements of telecommunications applications, Voice over Internet Protocol (VoIP), and servers. The DSP-120 system can be scaled in 1 kVA or 2.5 kVA increments up to 27.5 kVA in a N+1 redundant configuration.
For markets utilizing 230 VAC 50Hz, We also offer the DSP-230 Modular Inverter System which provides the same product features and benefits.

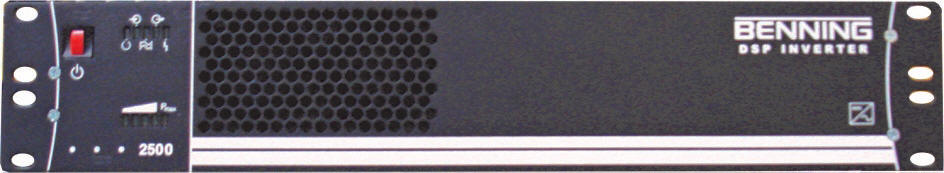

The DSP Series of Telecom Inverters from Benning, are designed to address the critical AC powering requirements of telecommunications applications. The DSP series features Digital Signal Processor technology to provide pure sine-wave output and high operating efficiency. This family of Inverters is engineered specifically for telecom and IP applications. They offer superior operating efficiency, low audible noise and outstanding dynamic step-load response.
We are pleased to introduce a new line of Benning Inverters based on our popular DSP product line. This new inverter has been designed to specifically meet the critical demands of the Data Processing and Telecommunications Data markets. They are designed to mount into 19, four post cabinets using standard front to back mounting rails (customer provided). These units operate from nominal 48 VDC and provide 2000W/2500VA of continuous sine wave AC power. Various output configurations are available, consult Benning sales. This inverter provides the flexibility of having either straight 120VAC output or 120/240 VAC output using our optional split-phase output transformer. Various output configurations are available, in two output groups as listed below: Hard wired terminal block, NEMA 5-15 R, NEMA 5-20R, IEC 320, NEMA L5-30R twist-lock and L6-20R twist lock.

For other types of Inverters please send an email to:sdahan@sdelectroniks.com
